This is a four-part series of posts explaining how to install and configure a Linux-based appliance in your vSphere lab environment to take the role as a Windows Domain Controller.

Update: Fernando Pimenta has been kind enough to translate this series into Portuguese. You can find the translated copies here.

Selecting the roles

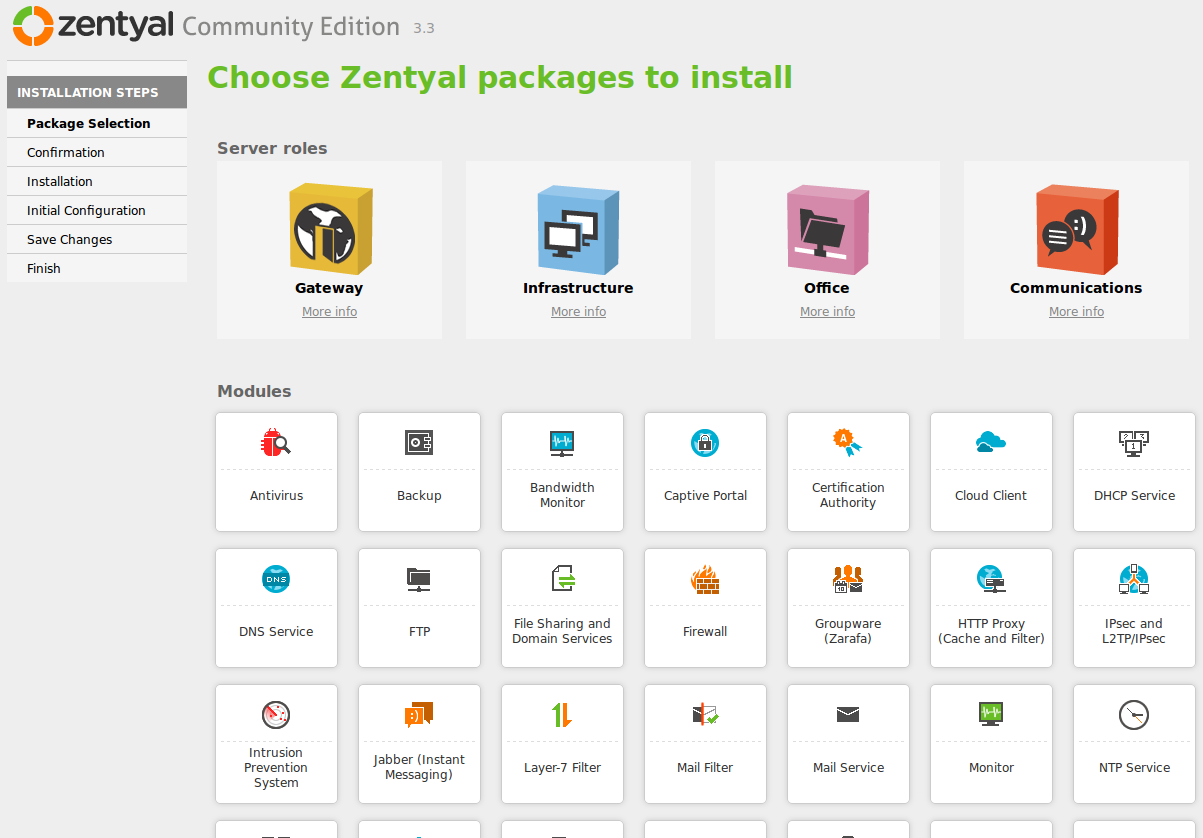

Following on from part 3, log into the administrative web page with the username and password you provided whilst deploying the appliance.  You’re presented with 4 standard Server Roles, each of which selects a subset of appropriate Modules, or you can individually select Modules.

6 Zentyal package selection

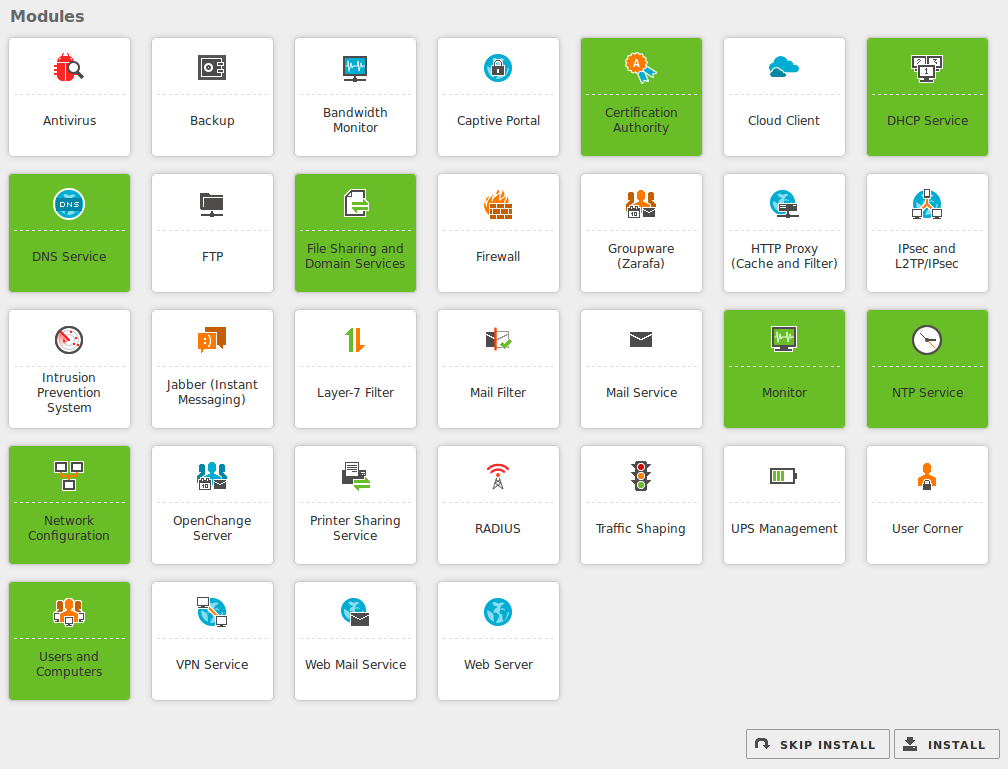

I could have chosen the Infrastructure Role as the basis for this Domain Controller and tweaked it, but instead I individually selected the following Modules. The “File Sharing and Domain Services” Module is all you need to select for a Domain Controller and the other Modules are pulled in as dependencies, but I thought the other packages I picked would be useful in my lab.

  • Click Install at the bottom right of the grid.

7 Zentyal packages selected

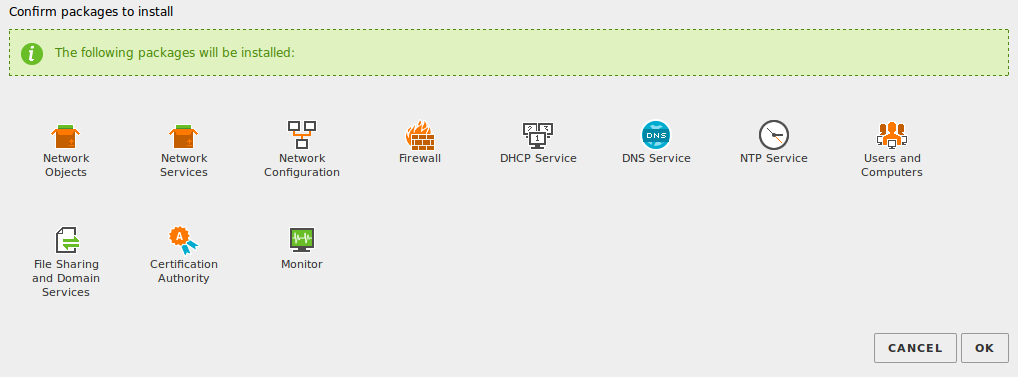

  • Confirm to go ahead with the module installs (a number of other dependency packages are picked up).

8 Zentyal package confirmation

Configuring the appliance

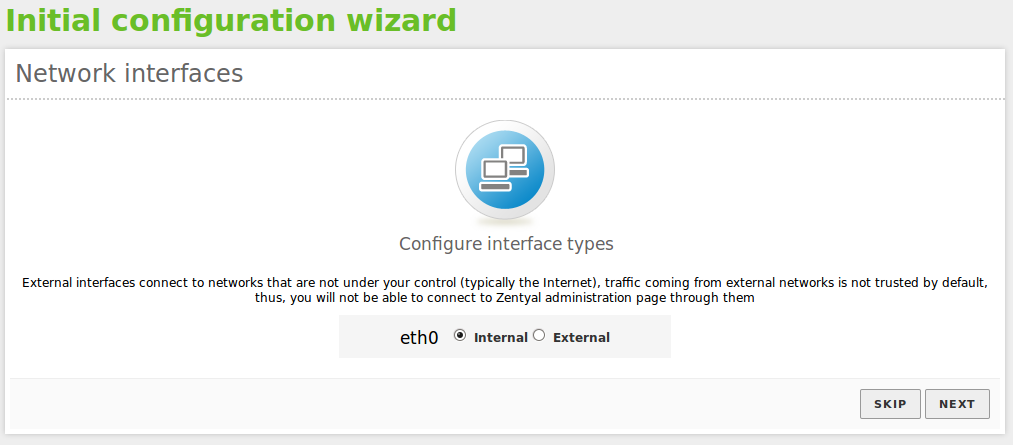

Once the packages are installed the configuration stage begins. First, you set which network interfaces are trusted. In my case I didn’t create a multi-homed VM so there was only once interface to set. This is my lab so I threw caution to wind and set it to Internal.

9 Network interfaces

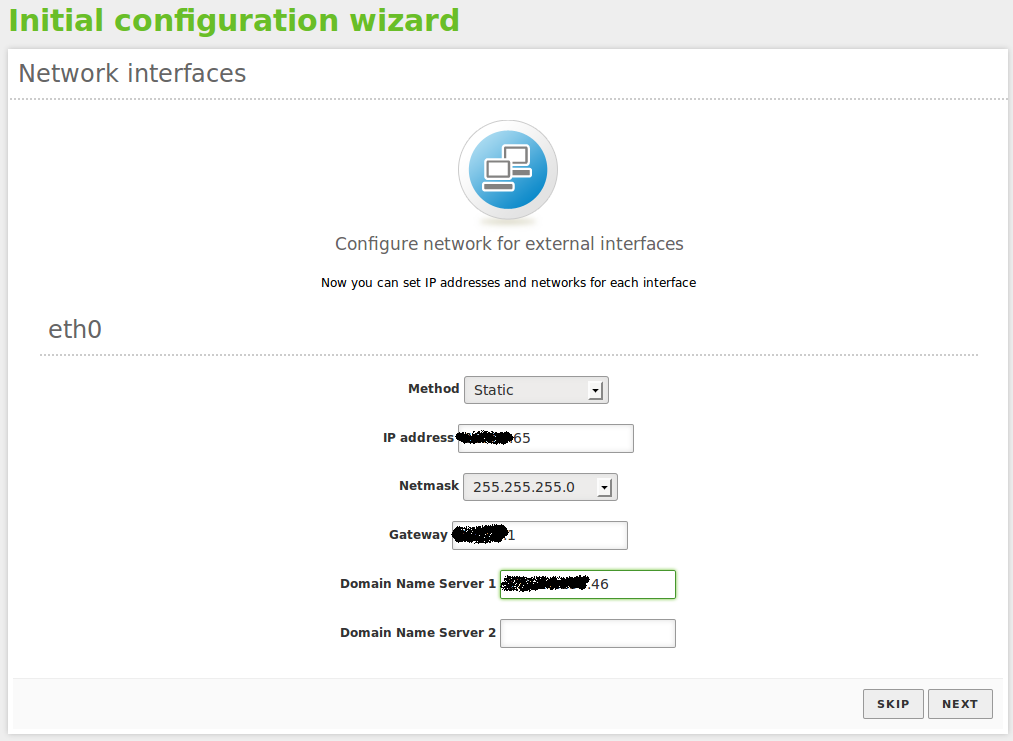

  • Set a static IP address

10 IP settings blanked

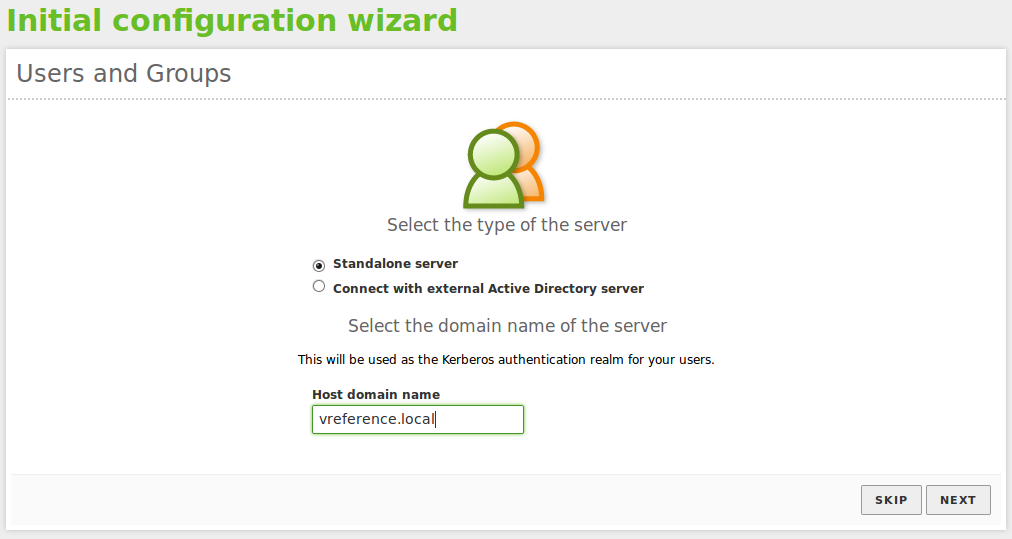

  •  I’m not joining this to an existing domain, so kept this a Standalone server and set the domain name.

11 Standalone domainMore module changes are made which can take a few minutes.  Once the changes are complete a friendly Panda invites you to click onwards to the Dashboard.

12 Panda

Part 4 concludes this series and explains how to configure vCenter to connect to your Zentyal appliance.
